HCPL-3101 - Power MOSFET/IGBT Gate Drive Optocouplers

Download the HCPL-3101 datasheet PDF. This datasheet also covers the HCPL3100 variant, as both devices belong to the same power mosfet/igbt gate drive optocouplers family and are provided as variant models within a single manufacturer datasheet.

General Description

The HCPL-3100/3101 consists of an LED

optically coupled to an integrated circuit with a power output stage.

These optocouplers are suited for driving power MOSFETs and IGBTs used in motor control inverter applications.

Key Features

  • High Output Current IO1 and IO2 (0.4 A Peak, 0.1 A Continuous).
  • 1.5 kV/µs Minimum Common Mode Rejection (CMR) at VCM = 600 V.
  • Wide Operating VCC Range (15 to 30 Volts).
  • High Speed 1 µs Typical Propagation Delay (HCPL-3100) 0.3 µs Typical Propagation Delay (HCPL-3101).
  • Recognized under UL 1577 for Dielectric Withstand Proof Test Voltages of 5000 Vac, 1 Minute.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HCPL3100-HP.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number HCPL-3101
Manufacturer HP
File Size 222.00 KB
Description Power MOSFET/IGBT Gate Drive Optocouplers
Datasheet download datasheet HCPL-3101 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HCPL-3100 Power MOSFET/IGBT Gate Drive Optocouplers Agilent
HCPL-3120 Agilent 2.5 Amp Output Current IGBT Gate Drive Optocoupler Agilent
HCPL-3120 2.5 Amp Output Current IGBT Gate Drive Optocoupler Avago
HCPL-3140 0.4 Amp Output Current IGBT Gate Drive Optocoupler Agilent
HCPL-3140 0.4 Amp Output Current IGBT Gate Drive Optocoupler Avago

Other Datasheets by HP

Part Number Description
HCPL-3100 Power MOSFET/IGBT Gate Drive Optocouplers
HCPL-3150 0.5 Amp Output Current IGBT Gate Drive Optocoupler
HCPL-3160 2.0 Amp IGBT Gate Drive Optocoupler
HCPL-3000 Power Bipolar Transistor Base Drive Optocoupler
HCPL-0454 High Speed Optocouplers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

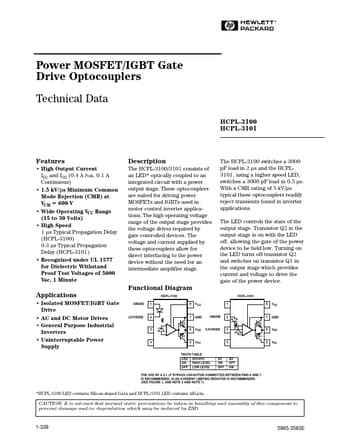

H Power MOSFET/IGBT Gate Drive Optocouplers Technical Data HCPL-3100 HCPL-3101 Features • High Output Current IO1 and IO2 (0.4 A Peak, 0.1 A Continuous) • 1.5 kV/µs Minimum Common Mode Rejection (CMR) at VCM = 600 V • Wide Operating VCC Range (15 to 30 Volts) • High Speed 1 µs Typical Propagation Delay (HCPL-3100) 0.3 µs Typical Propagation Delay (HCPL-3101) • Recognized under UL 1577 for Dielectric Withstand Proof Test Voltages of 5000 Vac, 1 Minute Applications • Isolated MOSFET/IGBT Gate Drive • AC and DC Motor Drives • General Purpose Industrial Inverters • Uninterruptable Power Supply Description The HCPL-3100/3101 consists of an LED* optically coupled to an integrated circuit with a power output stage.
