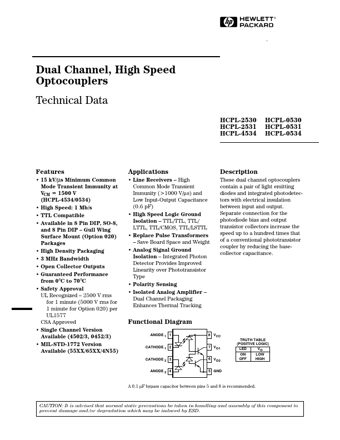

HCPL-4534 Datasheet, Optocouplers, HP

HCPL-4534 Features

• Optocouplers
• 15 kV/µs Minimum Common Mode Transient Immunity at VCM = 1500 V (HCPL-4534/0534)
• High Speed: 1 Mb/s
• TTL Compatible
• Available in 8 Pin DIP, SO-8,

PDF File Details

Part number:

HCPL-4534

Manufacturer:

HP

File Size:

204.13kb

Download:

📄 Datasheet

Description:

High speed optocouplers. These dual channel optocouplers contain a pair of light emitting diodes and integrated photodetectors with electrical insulation betw

HCPL-4534 Application

• Applications
• Line Receivers
    – High Common Mode Transient Immunity (>1000 V/µs) and Low Input-Output Capacitance (0.6 pF) <
