HLMP-1600 Integrated Resistor LED Lamps

HLMP-1600 Description

H T-13/4 (5 mm), T-1 (3 mm), 5 Volt, 12 Volt, Integrated Resistor LED Lamps Technical Data HLMP-1600, HLMP-1601 HLMP-1620, HLMP-1621 HLMP-1640, HLMP.
The 5 volt and 12 volt series lamps contain an integral current limiting resistor in series with the LED.

HLMP-1600 Features

* Integral Current Limiting Resistor
* TTL Compatible Requires no External Current Limiter with 5 Volt/12 Volt Supply
* Cost Effective Saves Space and Resistor Cost
* Wide Viewing Angle
* Available in All Colors Red, High Efficiency Red, Yellow, and High Perfo

📥 Download Datasheet

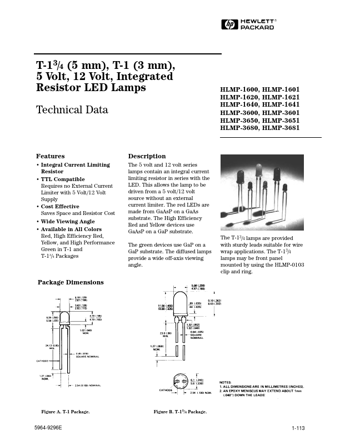

Preview of HLMP-1600 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HLMP-1600
Manufacturer
HP
File Size
137.13 KB
Datasheet
HLMP-1600-HP.pdf
Description
Integrated Resistor LED Lamps
