DF2-8P-2.5C DF2 Series / Connector

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information. All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative. 2.5mm Pitch Connector Directly Mounted on Board (Product Compliant to UL/CSA Standard) DF2 Series www.DataSheet4U.com .

DF2-8P-2.5C Features

* 1. Header Cost Saving Based on the harnesses product at the both ends of insertion/extraction socket and directly mounted connector, the both socket harnesses can afford to save either of two necessary headers, while functions to separate mutual boards are remained. 2. Space Saving This connector i

DF2-8P-25C_HRS.pdf

This datasheet PDF includes multiple part numbers: DF2-8P-2.5C, DF2-8P-25C. Please refer to the document for exact specifications by model.

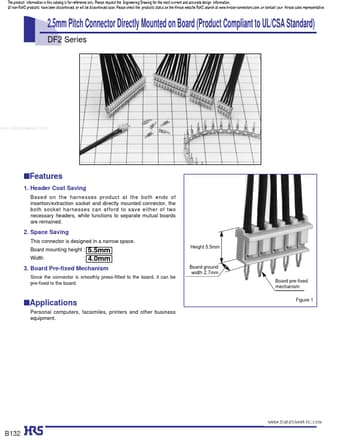

DF2-8P-2.5C Datasheet Preview Page 2 DF2-8P-2.5C Datasheet Preview Page 3

Datasheet Details

Part number:

DF2-8P-2.5C, DF2-8P-25C

Manufacturer:

HRS

File Size:

148.14 KB

Description:

Df2 series / connector.

Note:

This datasheet PDF includes multiple part numbers: DF2-8P-2.5C, DF2-8P-25C.
Please refer to the document for exact specifications by model.
