74HC04N - Hex Inverters

Download the 74HC04N datasheet PDF. This datasheet also covers the 74HC04 variant, as both devices belong to the same hex inverters family and are provided as variant models within a single manufacturer datasheet.

Description

The 74HC04 types consist of six inverter circuits.

They perform the Boolean function Y= A in positive logic.

Each of the six inverters is a single stage.

Features

  • Wide Operating Voltage Range of 2.0V to 6.0V.
  • Outputs Can Drive up to 10 LSTTL Loads.
  • Low Power Consumption, 20µA Maximum ICC.
  • Typical tpd: 8ns.
  • ±4mA Output Drive at 5.0V.
  • Low Input Current of 1µA Maximum 74HC04 SOP-14.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (74HC04-HTC.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
74HC04 Hex Inverters Texas Instruments
74HC04 Hex inverter NXP Semiconductors
74HC04 HEX INVERTERS Diodes
74HC04 Hex inverter nexperia
74HC04-Q100 Hex inverter NXP Semiconductors

Other Datasheets by HTC KOREA

Part Number Description
74HC04 Hex Inverters
74HC04D Hex Inverters

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

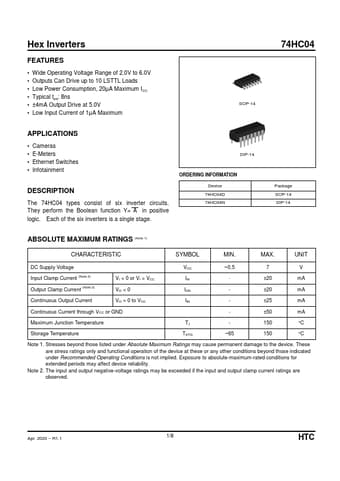

Hex Inverters FEATURES • Wide Operating Voltage Range of 2.0V to 6.0V • Outputs Can Drive up to 10 LSTTL Loads • Low Power Consumption, 20µA Maximum ICC • Typical tpd: 8ns • ±4mA Output Drive at 5.0V • Low Input Current of 1µA Maximum 74HC04 SOP-14 APPLICATIONS • Cameras • E-Meters • Ethernet Switches • Infotainment DESCRIPTION The 74HC04 types consist of six inverter circuits. They perform the Boolean function Y= A in positive logic. Each of the six inverters is a single stage. DIP-14 ORDERING INFORMATION Device 74HC04D 74HC04N Package SOP-14 DIP-14 ABSOLUTE MAXIMUM RATINGS (Note 1) CHARACTERISTIC SYMBOL MIN. MAX. UNIT DC Supply Voltage VCC Input Clamp Current (Note 2) VI < 0 or VI > VCC IIK Output Clamp Current (Note 2) VO < 0 IOK −0.
