CS8190D

Precision Air-Core Tach/Speedo Driver

HTC

CS8190D Features

* Direct Sensor Input

* High Output Torque

* Low Pointer Flutter

* High Input Impedance

* Over Voltage Protection

* Return to Zero SOP-20 CS8190 DESCRIPTION The CS8190 is specially designed for use with air-core meter movements. The IC provides all

CS8190D General Description

The CS8190 is specially designed for use with air-core meter movements. The IC provides all the functions necessary for an analog tachometer or speedometer. The CS8190 takes a speed sensor input and generates sine and cosine related output signals to differentially drive an air-core meter. The outp.

CS8190D Datasheet (973.78 KB)

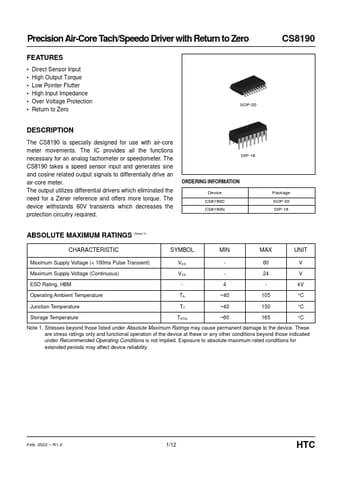

CS8190D Datasheet Preview — Preview of CS8190D PDF

Datasheet Details

Part number:

CS8190D

Manufacturer:

HTC

File Size:

973.78 KB

Description:

Precision air-core tach/speedo driver.
