LM358N - Dual Operational Amplfiers

HTC

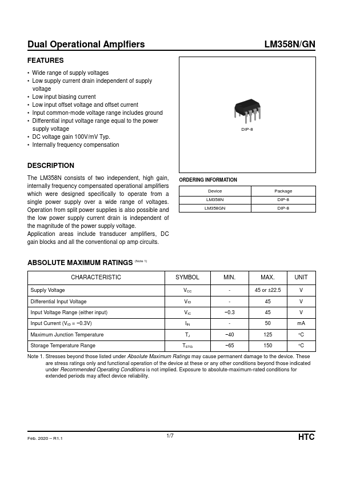

LM358N Datasheet Preview — Preview of LM358N PDF

Datasheet Details

Part number	LM358N
Manufacturer	HTC
File Size	286.29 KB
Description	Dual Operational Amplfiers
Datasheet	LM358N-HTC.pdf

LM358N Product details

Description

The LM358N consists of two independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages.

Features

Wide range of supply voltages.
Low supply current drain independent of supply voltage.
Low input biasing current.
Low input offset voltage and offset current.
Input common-mode voltage range includes ground.
Differential input voltage range equal to the power supply voltage.
DC voltage gain 100V/mV Typ.
Internally frequency compensation LM358N/GN DIP-8.
