LM39101 - 1A Low-Voltage Low-Dropout Regulator

This page provides the datasheet information for the LM39101, a member of the LM39100 1A Low-Voltage Low-Dropout Regulator family.

Datasheet Summary

Description

regulators that provide low-voltage, high-current output.

Features

  • Fixed and adjustable output voltages to 1.24V.
  • 410mV typical dropout at 1A Ideal for 3.0V to 2.5V conversion Ideal for 2.5V to 1.8V or 1.5V conversion.
  • 1A minimum guaranteed output current.
  • 1% initial accuracy.
  • Low ground current.
  • Current limiting and thermal shutdown.
  • Reversed-battery protection.
  • Reversed-leakage protection.
  • Fast transient response.
  • Low-profile SOT-223 package.
  • Moisture Sensitivity Level 3 SOT-223 PKG TO-252 3L / 5L PKG S.

📥 Download Datasheet

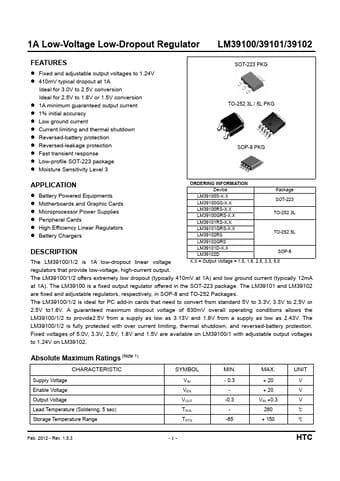

Datasheet preview – LM39101
