MC34118

Voice Switched Speakerphone

MC34118 Features

* Improved Attenuator Gain Range: 52dB Between Transmit and Receive

* Low Voltage Operation for Line-Powered Application (3.0V to 6.5V)

* 4-Point Signal Sensing for Improved Sensitivity

* Background Noise Monitors for Both Transmit and Receive Paths

* Micropho

MC34118 General Description

The MC34118 Voice Switched Speakerphone Circuit incorporates the necessary amplifiers, attenuators, level detectors, and control algorithm to form the heart of a high quality hands-free speakerphone system. Included are a microphone amplifier with adjustable gain and MUTE control, Transmit and Rece.

MC34118 Datasheet (347.06 KB)

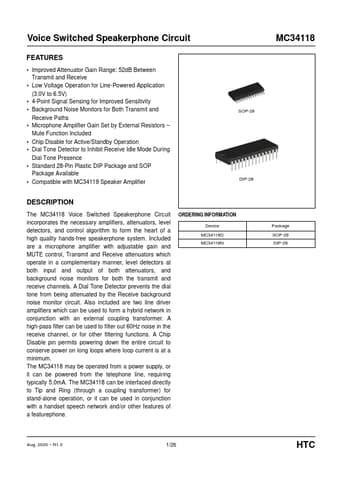

Preview of MC34118 PDF

Datasheet Details

Part number:

MC34118

Manufacturer:

HTC

File Size:

347.06 KB

Description:

Voice switched speakerphone.
