TJ2132 - 2.0A Low Output Voltage Ultra LDO Regulator

HTC

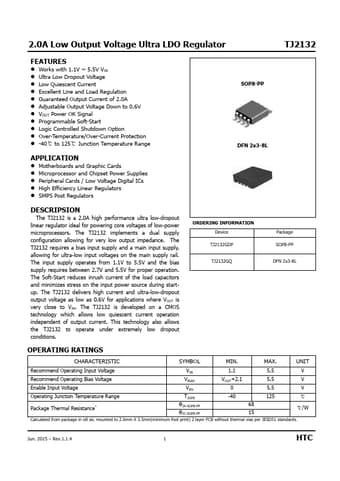

TJ2132 Datasheet Preview — Preview of TJ2132 PDF

Datasheet Details

Part number	TJ2132
Manufacturer	HTC
File Size	1.22 MB
Description	2.0A Low Output Voltage Ultra LDO Regulator
Datasheet	TJ2132-HTC.pdf

TJ2132 Product details

Description

Package Marking Compliance Supplied As SOP8-PP 2.0A, Enable, Adjustable, TJ2132GDP Power OK, Soft start TJ2132G RoHS, Halogen Free Reel DFN 2x3-8L TJ2132GQ 2.0A, Enable, Adjustable, Power OK, Soft start 2132 RoHS, Halogen Free Reel Status Active Contact Us ORDERING INFORMATION (Continued) TJ 2132 Package Type DP : SOP8-PP Q : DFN2X3-8L Green Mode - G : Halogen Free Root Name Product Code Jun.2015 Rev.1.1.4 2 HTC 2.0A Low Output Voltage Ultra LDO Regulator PIN CO

Features

Works with 1.1V ~ 5.5V VIN.
Ultra Low Dropout Voltage.
Low Quiescent Current.
Excellent Line and Load Regulation.
Guaranteed Output Current of 2.0A.
Adjustable Output Voltage Down to 0.6V.
VOUT Power OK Signal.
Programmable Soft-Start.
Logic Controlled Shutdown Option.
Over-Temperature/Over-Current Protection.
-40℃ to 125℃ Junction Temperature Range.
