HT6541A - Push-Pull Output Sub-Microamp Comparators

Product Overview

HTCSEMI

📥 Download Datasheet

HT6541A Push-Pull Output Sub-Microamp Comparators by HTCSEMI - Datasheet Preview — Datasheet preview – HT6541A

Datasheet Details

Part number	HT6541A
Manufacturer	HTCSEMI
File Size	1.23 MB
Description	Push-Pull Output Sub-Microamp Comparators
Datasheet	HT6541A Datasheet

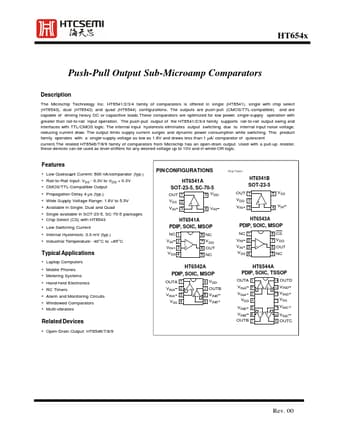

Additional preview pages of the HT6541A datasheet.

Product details

Description

The Microchip Technology Inc.

Features

Low Quiescent Current: 600 nA/comparator (typ. ).
Rail-to-Rail Input: VSS - 0.3V to VDD + 0.3V.
CMOS/TTL-Compatible Output.
Propagation Delay 4 µs (typ. ).
Wide Supply Voltage Range: 1.6V to 5.5V.
Available in Single, Dual and Quad.
Single available in SOT-23-5, SC-70-5 packages.
Chip Select (CS) with HT6543.
Low Switching Current.
Internal Hysteresis: 3.3 mV (typ. ).
Industrial Temperature: -40°C to.
