P1500ECL, P1500EAL - Thyristor Surge Suppressor

HUAAN

The P1500ECL by HUAAN is a Thyristor Surge Suppressor. Below is the official datasheet preview.

📥 Download Datasheet

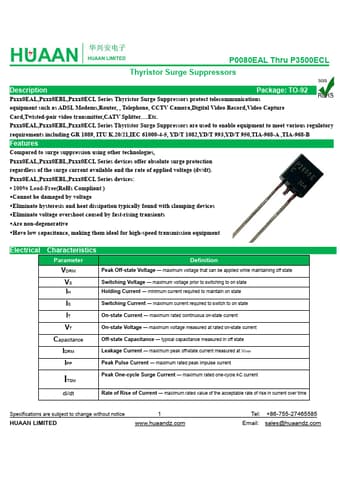

P1500ECL Thyristor Surge Suppressor by HUAAN - Datasheet Preview — Official preview page of the **P1500ECL** Thyristor Surge Suppressor datasheet (HUAAN).

Datasheet Details

Part number	P1500ECL, P1500EAL
Manufacturer	HUAAN
File Size	279.55 KB
Description	Thyristor Surge Suppressor
Datasheet	P1500EAL-HUAAN.pdf
Note	This datasheet PDF includes multiple part numbers: P1500ECL, P1500EAL. Please refer to the document for exact specifications by model.
Additional preview pages of the P1500ECL datasheet.

P1500ECL Product details

Description

Package: TO-92 Pxxx0EAL,Pxxx0EBL,Pxxx0ECL Series Thyristor Surge Suppressors protect telecommunications equipment such as ADSL Modems,Router, , Telephone, CCTV Camera,Digital Video Record,Video Capture Card,Twisted-pair video transmitter,CATV SplitterEtc.Pxxx0EAL,Pxxx0EBL,Pxxx0ECL Series Thyristor Surge Suppressors are used to enable equipment to meet various regulatory requirements including GR 1089, ITU K.20/21,IEC 61000-4-5, YD/T 1082,YD/T 993,YD/T 950,TIA-968-A ,TIA-968-B

Features

Compared to surge suppression using other technologies, Pxxx0EAL,Pxxx0EBL,Pxxx0ECL Series devices offer absolute surge protection regardless of the surge current available and the rate of applied voltage (dv/dt). Pxxx0EAL,Pxxx0EBL,Pxxx0ECL Series devices:.
100% Lead-Free(RoHs Compliant ).
Cannot be damaged by voltage.
Eliminate hysteresis and heat dissipation typically found with clamping devices.
Eliminate voltage overshoot caused by fast-rising transien.
