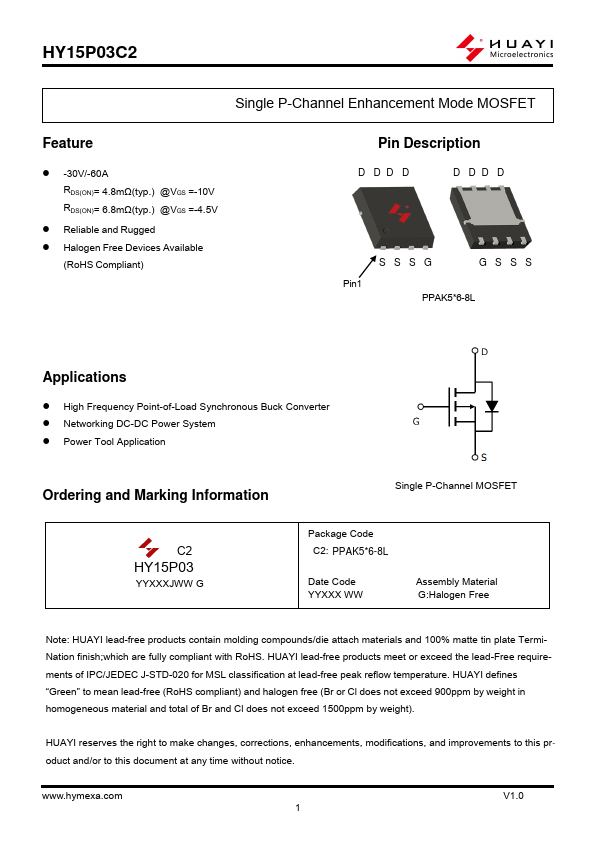

HY15P03C2
Feature
- -30V/-60A RDS(ON)= 4.8mΩ(typ.) @VGS =-10V RDS(ON)= 6.8mΩ(typ.) @VGS =-4.5V
- Reliable and Rugged
- Halogen Free Devices Available
(Ro HS pliant)
Pin Description
D DD D
D DD D
SSSG
GSSS
Pin1 PPAK5- 6-8L
Applications
- High Frequency Point-of-Load Synchronous Buck Converter
- Networking DC-DC Power System
- Power Tool Application
Ordering and Marking Information
C2
HY15P03
YYXXXJWW G
Single P-Channel MOSFET
Package Code C2: PPAK5- 6-8L
Date Code YYXXX WW
Assembly Material G:Halogen Free
Note: HUAYI lead-free products contain molding pounds/die attach materials and 100% matte tin plate Termi Nation finish;which are fully pliant with Ro HS. HUAYI lead-free products meet or exceed the lead-Free requirements of IPC/JEDEC J-STD-020 for MSL classification at lead-free peak reflow temperature. HUAYI defines “Green” to mean lead-free (Ro HS pliant) and halogen free (Br or Cl does not exceed 900ppm by weight in homogeneous material and total of Br and Cl does not exceed 1500ppm...
