HY15P03S - P-Channel Enhancement Mode MOSFET

HY15P03S Description

HY15P03S .
DD DD S S S G Top View of SOP-8 Applications. Power Management in DC/DC Converter P-Channel MOSFET Ordering and Marking Information S HY15P03.

HY15P03S Features

* -30V / -15A RDS(ON)=6.6m Ω (typ. ) @ VGS=-10V RDS(ON)=8.2m Ω (typ. ) @ VGS=-4.5V
* Avalanche Rated
* Reliable and Rugged

HY15P03S Applications

* Power Management in DC/DC Converter P-Channel MOSFET Ordering and Marking Information S HY15P03 YYÿ XXXJWW G Package Code S : SOP-8 Date Code YYXXX WW Assembly Material G : Lead Free Device Note: HOOYI lead-free products contain molding compounds/die attach materials and 100% matte tin p

📥 Download Datasheet

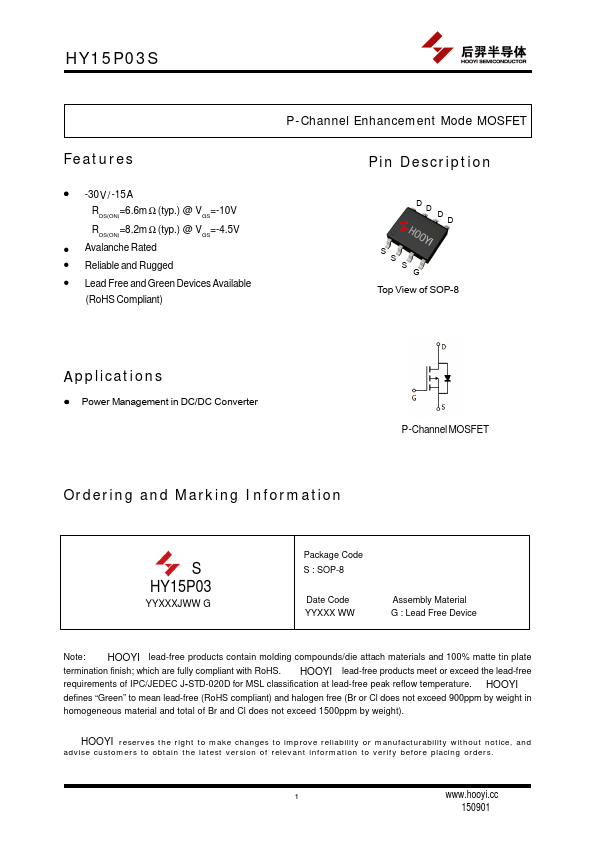

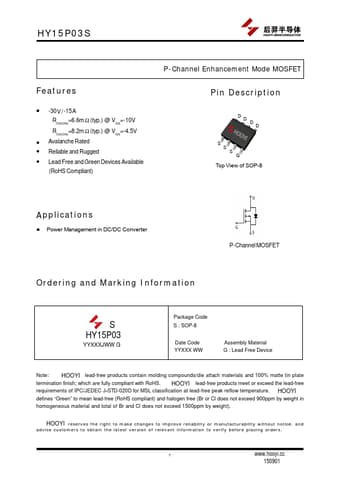

Preview of HY15P03S PDF

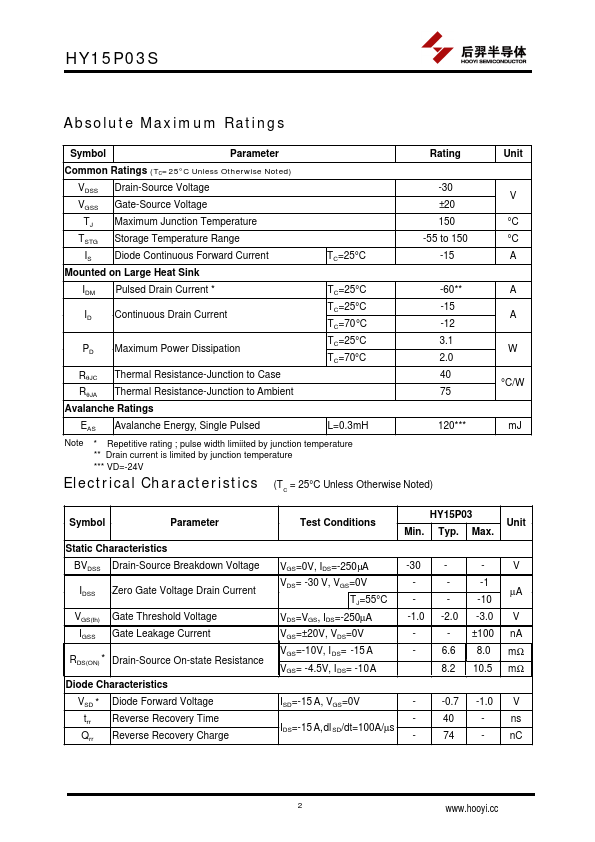

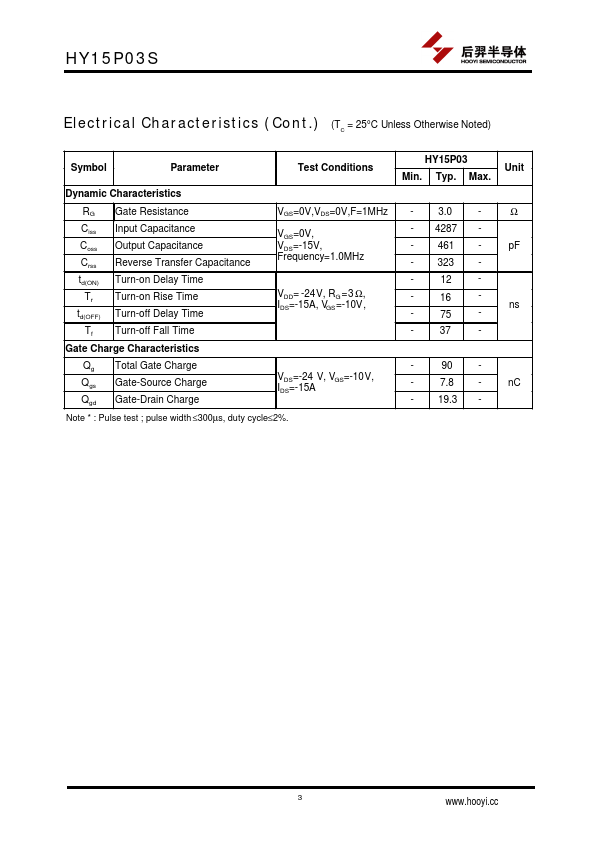

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HY15P03S
Manufacturer
HUAYI
File Size
4.01 MB
Datasheet
HY15P03S-HUAYI.pdf
Description
P-Channel Enhancement Mode MOSFET
