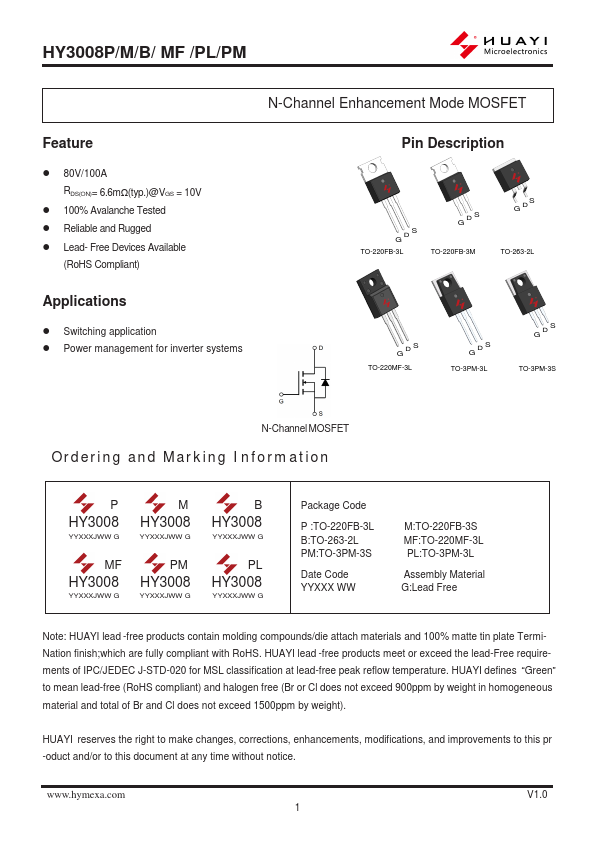

HY3008PL
Feature z 80V/100A RDS(ON)= 6.6mΩ(typ.)@VGS = 10V z 100% Avalanche Tested z Reliable and Rugged z Lead- Free Devices Available
(Ro HS pliant)
Applications z Switching application z Power management for inverter systems
Pin Description
DS G TO-220FB-3L
DS G TO-220FB-3M
G DS TO-263-2L
DS G TO-220MF-3L
DS G TO-3PM-3L
DS G TO-3PM-3S
N-Channel MOSFET
Ordering and Marking Information
HY3008
YYXXXJWW G
HY3008
YYXXXJWW G
HY3008
YYXXXJWW G
HY3008
YYXXXJWW G
HY3008
YYXXXJWW G
HY3008
YYXXXJWW G
Package Code
P :TO-220FB-3L B:TO-263-2L PM:TO-3PM-3S
Date Code YYXXX WW
M:TO-220FB-3S MF:TO-220MF-3L PL:TO-3PM-3L
Assembly Material G:Lead Free
Note: HUAYI lead -free products contain molding pounds/die attach materials and 100% matte tin plate Termi Nation finish;which are fully pliant with Ro HS. HUAYI lead -free products meet or exceed the lead-Free requirements of IPC/JEDEC J-STD-020 for MSL classification at lead-free peak reflow temperature. HUAYI defines “Green” to mean...
