HY3010U, HY3010D Datasheet - HUAYI

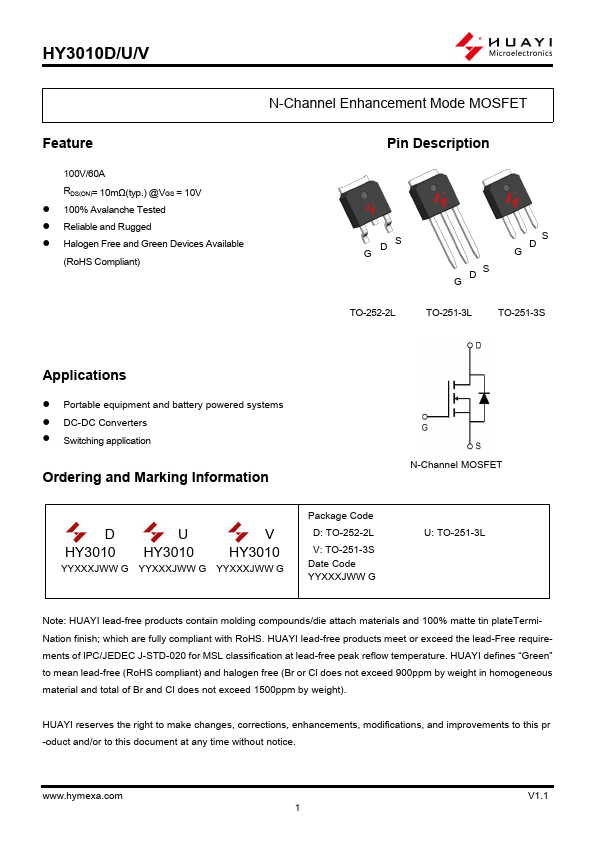

HY3010U N-Channel Enhancement Mode MOSFET

G DS G DS S GD TO-252-2L TO-251-3L TO-251-3S Applications * Portable equipment and battery powered systems * DC-DC Converters * Switching application Ordering and Marking Information D U V HY3010 HY3010 HY3010 YYXXXJWW G YYXXXJWW G YYXXXJWW G Package Code D: TO-252-2L V: TO.

HY3010D-HUAYI.pdf

This datasheet PDF includes multiple part numbers: HY3010U, HY3010D. Please refer to the document for exact specifications by model.

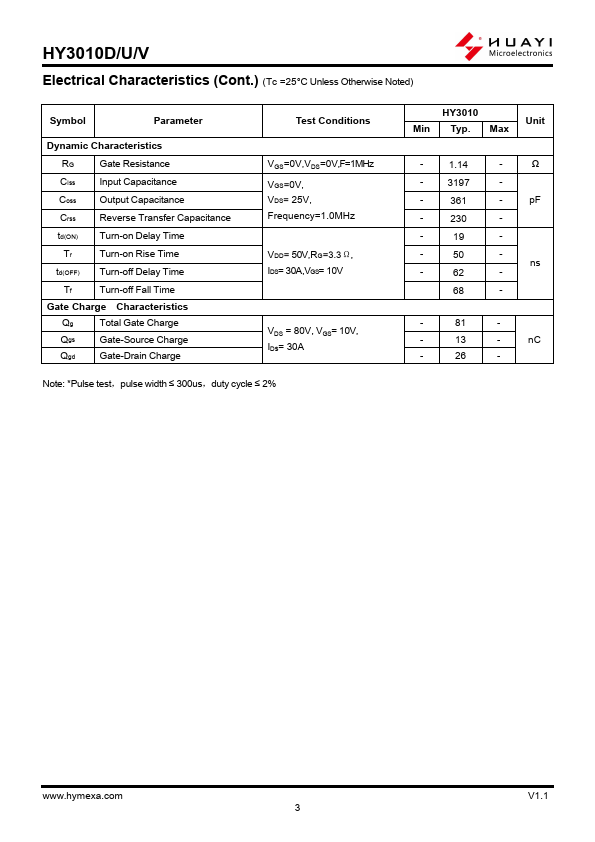

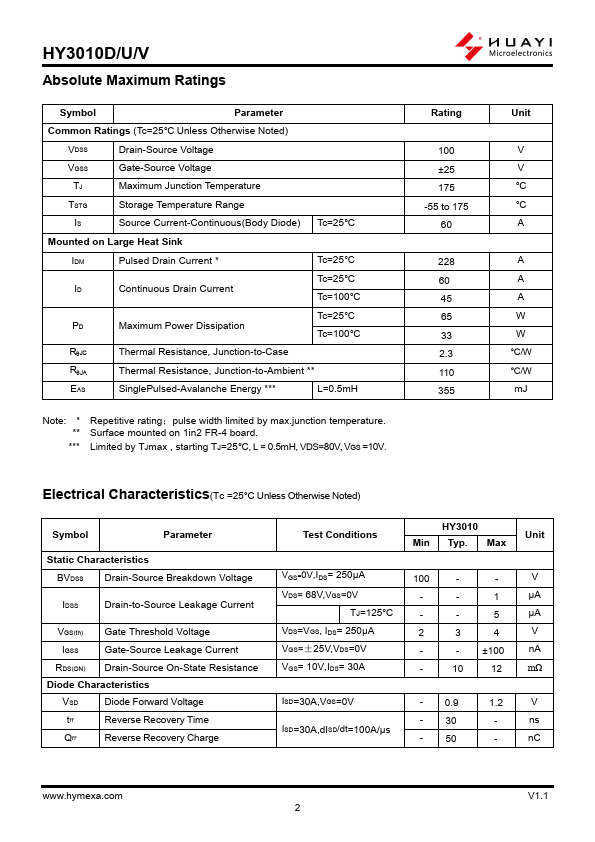

HY3010U Datasheet Preview Page 2 HY3010U Datasheet Preview Page 3

Datasheet Details

Part number:

HY3010U, HY3010D

Manufacturer:

HUAYI

File Size:

1.23 MB

Description:

N-channel enhancement mode mosfet.

Note:

This datasheet PDF includes multiple part numbers: HY3010U, HY3010D.
Please refer to the document for exact specifications by model.
