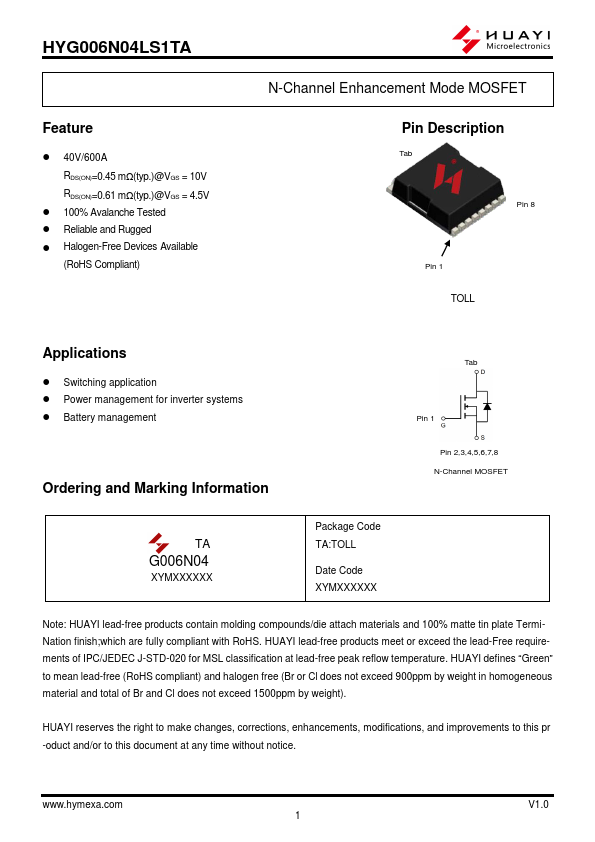

HYG006N04LS1TA
Feature
- 40V/600A RDS(ON)=0.45 mΩ(typ.)@VGS = 10V RDS(ON)=0.61 mΩ(typ.)@VGS = 4.5V
- 100% Avalanche Tested
- Reliable and Rugged
- Halogen-Free Devices Available
(Ro HS pliant)
N-Channel Enhancement Mode MOSFET Pin Description
Tab
Pin 8
Pin 1
TOLL
Applications
- Switching application
- Power management for inverter systems
- Battery management
Ordering and Marking Information
Tab
Pin 1 Pin 2,3,4,5,6,7,8
N-Channel MOSFET
G006N04
XYMXXXXXX
Package Code TA:TOLL
Date Code XYMXXXXXX
Note: HUAYI lead-free products contain molding pounds/die attach materials and 100% matte tin plate Termi Nation finish;which are fully pliant with Ro HS. HUAYI lead-free products meet or exceed the lead-Free requirements of IPC/JEDEC J-STD-020 for MSL classification at lead-free peak reflow temperature. HUAYI defines “Green” to mean lead-free (Ro HS pliant) and halogen free (Br or Cl does not exceed 900ppm by weight in homogeneous material and total of Br and Cl does not exceed 1500ppm by weight).
HUAYI...
