Datasheet Details
| Part number | HYG007N03LS1C2 |
|---|---|
| Manufacturer | HUAYI |
| File Size | 632.14 KB |
| Description | Single N-Channel Enhancement Mode MOSFET |
| Datasheet |
 HYG007N03LS1C2-HUAYI.pdf
|
| Part number | HYG007N03LS1C2 |
|---|---|
| Manufacturer | HUAYI |
| File Size | 632.14 KB |
| Description | Single N-Channel Enhancement Mode MOSFET |
| Datasheet |
HYG007N03LS1C2-HUAYI.pdf
|

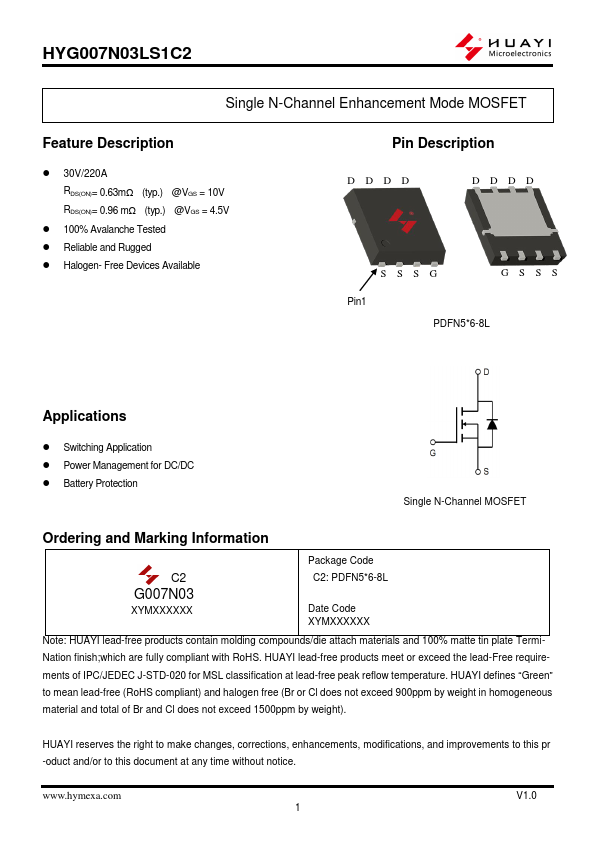

30V/220A RDS(ON)= 0.63mΩ (typ.) @VGS = 10V RDS(ON)= 0.96 mΩ (typ.) @VGS = 4.5V 100% Avalanche Tested Reliable and Rugged Halogen- Free Devices Available Pin Description DDDD DDDD SSSG GSSS Pin1 PDFN5 6-8L Applications Switching Application Power Management for DC/DC Battery Protection Single N-Channel MOSFET Ordering and Marking Information C2 G007N03 XYMXXXXXX Package Code C2: PDFN5 6-8L Date Code XYMXXXXXX Note: HUAYI lead-free prod
