HYG013N03LS1C2 Datasheet - HUAYI

HYG013N03LS1C2 Single N-Channel MOSFET

* 30V/150A RDS(ON)= 1.3mΩ (typ.) @VGS = 10V RDS(ON)= 2.0mΩ (typ.) @VGS = 4.5V * 100% Avalanche Tested * Reliable and Rugged * Halogen- Free Devices Available Pin Description DDDD DDDD SSSG GSSS Pin1 PDFN5 *6-8L Applications * Switching Application * Power Management.

HYG013N03LS1C2 Datasheet (627.66 KB)

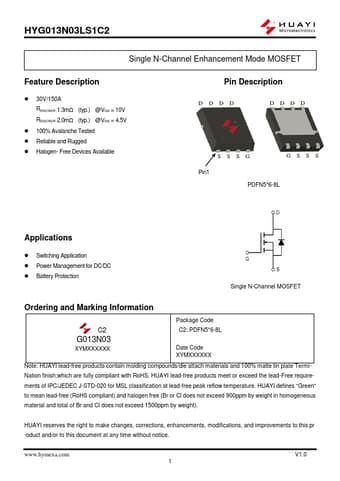

Preview of HYG013N03LS1C2 PDF

Datasheet Details

Part number:

HYG013N03LS1C2

Manufacturer:

HUAYI

File Size:

627.66 KB

Description:

Single n-channel mosfet.
