HK19F-DC6V Relay

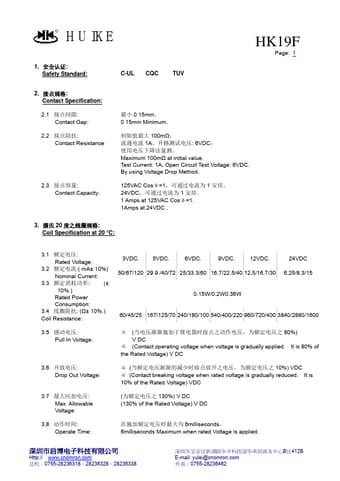

H U IK E 1. : Safety Standard: C-UL CQC TUV HK19F Page: 1 2. : Contact Specification: 2.1 : Contact Gap: 2.2 : Contact Resistance 2.3 : Contact Capacity: 0.15mm。 0.15mm Minimum. 100mΩ； 1A、: 6VDC；。 Maximum 100mΩ at initial value. Test Current: 1A, Open Circuit Test Voltage: 6VDC. By using Voltage Drop Method. 125VAC Cosφ=1， 1 。 24VDC， 1 。 1 Amps at 125VAC Cosφ=1. 1Amps at 24VDC . 3. 20 : Coil Specification at 20 °C: 3.1 : Rated Voltage: 3.2 :( mA± 10%) Nominal Current: 3.3 : (± .

HK19F-DC6V Datasheet (292.12 KB)
