KBJ401, KBJ4005 - 4.0Amp Bridge Rectifiers

Datasheet Details

Part number	KBJ401, KBJ4005
Manufacturer	HUIXIN
File Size	0.96 MB
Description	4.0Amp Bridge Rectifiers
Datasheet	KBJ4005-HUIXIN.pdf
Note	This datasheet PDF includes multiple part numbers: KBJ401, KBJ4005. Please refer to the document for exact specifications by model.

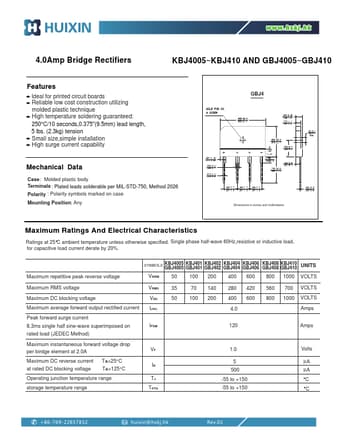

Ideal for printed circuit boards Reliable low cost construction utilizing molded plastic technique High temperature soldering guaranteed: 250°C/10 seconds,0.375"(9.5mm) lead length, 5 lbs. (2.3kg) tension Small size,simple installation High surge current capability Mechanical Data Case : Molded plastic body Terminals : Plated leads solderable per MIL-STD-750, Method 2026 Polarity : Polarity symbols marked on case Mounting Position: Any GBJ4 HOLE FOR NO. 6 SCREW .995(25.3) .983(24.7) .203(5.1.
