HVR-1X-4 Datasheet (HV Component Associates)

HVR-1X-4, High Voltage Power Diodes

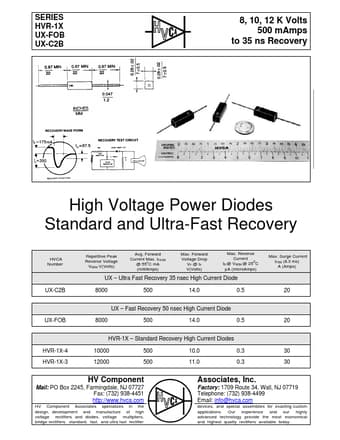

SERIES HVR-1X UX-FOB UX-C2B 8, 10, 12 K Volts 500 mAmps to 35 ns Recovery High Voltage Power Diodes Standard and Ultra-Fast Recovery HVCA Number UX-C2B Repetitive Peak Reverse Voltage VRRM V(Volts) Avg.

Forward Current Max.

IFAVM @ 55oC mA (milliAmps) Max.

Forward Voltage Drop VF @ IF V(Volts) Max.

Reverse Current IR @ VRRM @ 25OC µA (microAmps) UX Ultra Fast Recovery 35 nsec High Current Diode 8000 500 14.0 0.5 Max.

Surge Current IFSM (8.3 ms) A (Amps) 20 UX-FOB UX
