Z6027 (Z60xx) TRANSIENT SUPPRESSOR DIODE

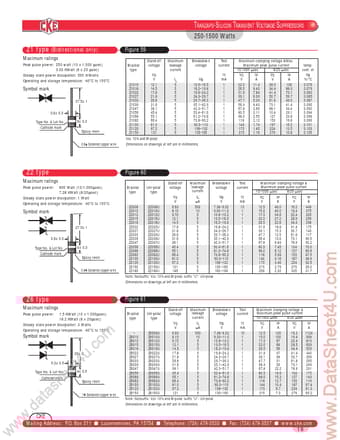

TRANZAPS-SILICON TRANSIENT VOLTGAGE SUPPRESSORS 250-1500 Watts Z1 type (Bidirectional only) Maximum ratings Peak pulse power: 250 watt (10 x 1,000 msec) 3.03 KWatt (8 x 20 msec) Steady state power dissipation: 500 mWatts Operating and storage temperature: -40°C to 150°C Bi-polar type Figure 59 Stand-off voltage Maximum leakage current Breakdown voltage Test current IT mA 1 1 1 1 1 1 1 1 1 1 1 1 1 Maximum clamping voltage &Max Maximum peak pulse current 10/1000 msec 8/20 msec VC IP VC IP V A V A.

Z6022_HVComponentAssociates.pdf

Z6027 Datasheet Preview — This datasheet PDF includes multiple part numbers: Z6027, Z6022. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

Z6027, Z6022

Manufacturer:

HV Component Associates

File Size:

79.23 KB

Description:

(z60xx) transient suppressor diode.

Note:

This datasheet PDF includes multiple part numbers: Z6027, Z6022.
Please refer to the document for exact specifications by model.
