HVC-10KV-D21-F12.5-332M Datasheet, Capacitors, HVCAP

✔ HVC-10KV-D21-F12.5-332M Features

Low losses High stability High capacitance in small size Kinked (preferred) or straight leads Compliant to RoHS directive 2002/95/EC APPLICATIONS
DC

✔ HVC-10KV-D21-F12.5-332M Application

DC high voltage Pulse high voltage SMPS HV power supply HF ballast Capacitors with 7.5 mm (0.30")

PDF File Details

Part number:

HVC-10KV-D21-F12.5-332M

Manufacturer:

HVCAP

File Size:

385.66kb

Download:

📄 Datasheet

Description:

Ceramic disc capacitors. Voltage (VDC) Min. Capacitance (pF) Max. Capacitance (pF) Mounting UJ,SL,X5F,X7R,N4700,Y5T,Y5U,Y5V 1000 to 50000 10 33 000 Through h

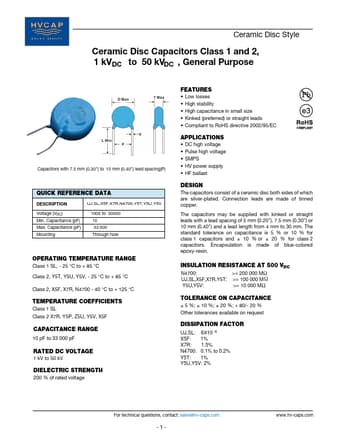

Datasheet Preview: HVC-10KV-D21-F12.5-332M

📥 Download PDF (385.66kb)
