HVC-15KV-E19-F12.5-332M, HVC81-2KV-UJ08-F5-10PK Datasheet - HVCAP

HVC-15KV-E19-F12.5-332M Ceramic Disc Capacitors

Voltage (VDC) Min. Capacitance (pF) Max. Capacitance (pF) Mounting UJ,SL,X5F,X7R,N4700,Y5T,Y5U,Y5V 1000 to 50000 10 33 000 Through hole www.DataSheet.net/ The capacitors consist of a ceramic disc both sides of which are silver-plated. Connection leads are made of tinned copper. The capacitors may .

HVC-15KV-E19-F12.5-332M Features

* Low losses High stability High capacitance in small size Kinked (preferred) or straight leads Compliant to RoHS directive 2002/95/EC APPLICATIONS

* DC high voltage Pulse high voltage SMPS HV power supp

HVC81-2KV-UJ08-F5-10PK_HVCAP.pdf

This datasheet PDF includes multiple part numbers: HVC-15KV-E19-F12.5-332M, HVC81-2KV-UJ08-F5-10PK. Please refer to the document for exact specifications by model.

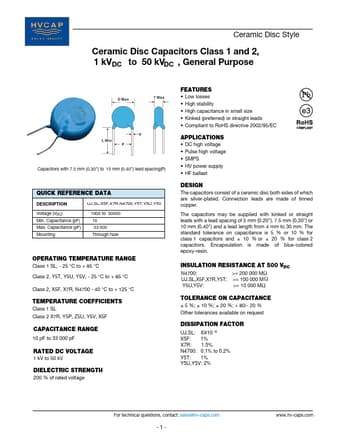

HVC-15KV-E19-F12.5-332M Datasheet Preview Page 2 HVC-15KV-E19-F12.5-332M Datasheet Preview Page 3

Datasheet Details

Part number:

HVC-15KV-E19-F12.5-332M, HVC81-2KV-UJ08-F5-10PK

Manufacturer:

HVCAP

File Size:

385.66 KB

Description:

Ceramic disc capacitors.

Note:

This datasheet PDF includes multiple part numbers: HVC-15KV-E19-F12.5-332M, HVC81-2KV-UJ08-F5-10PK.
Please refer to the document for exact specifications by model.
