HVC81-2KV-X08-F5-101K

Ceramic Disc Capacitors

HVC81-2KV-X08-F5-101K Features

* Low losses High stability High capacitance in small size Kinked (preferred) or straight leads Compliant to RoHS directive 2002/95/EC APPLICATIONS

* DC high voltage Pulse high voltage SMPS HV power supp

HVC81-2KV-X08-F5-101K General Description

Voltage (VDC) Min. Capacitance (pF) Max. Capacitance (pF) Mounting UJ,SL,X5F,X7R,N4700,Y5T,Y5U,Y5V 1000 to 50000 10 33 000 Through hole www.DataSheet.net/ The capacitors consist of a ceramic disc both sides of which are silver-plated. Connection leads are made of tinned copper. The capacitors may .

HVC81-2KV-X08-F5-101K Datasheet (385.66 KB)

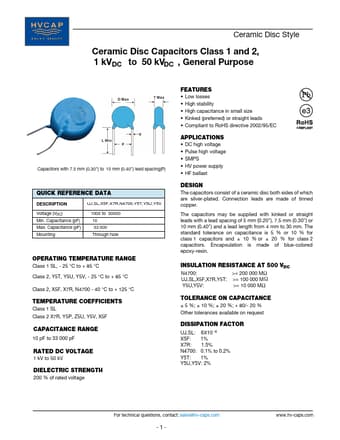

Preview of HVC81-2KV-X08-F5-101K PDF

Datasheet Details

Part number:

HVC81-2KV-X08-F5-101K

Manufacturer:

HVCAP

File Size:

385.66 KB

Description:

Ceramic disc capacitors.
