CL03-10 - High Voltage Axial Lead Power Diodes

CL03-10 Description

CL03-10 300mA 10kV 100nS High Voltage Axial Lead Power Diodes * * * * * * * * * .

CL03-10 Applications

* 1. High voltage multiplier circuit 2. Electrostatic generator circuit . 3. General purpose high voltage rectifier. 4. X-ray power supply. MECHANICAL DATA: 1. Case: epoxy resin molding. 2. Terminal: welding axis. 3. Net weight: 2.1 grams (approx). MAXIMUM RATINGS AND CHARACTERISTICS: (Absol

📥 Download Datasheet

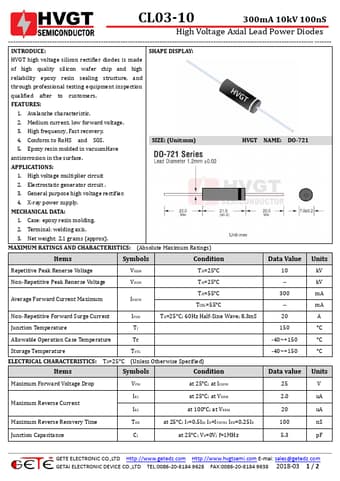

Preview of CL03-10 PDF
datasheet Preview Page 2

Datasheet Details

Part number
CL03-10
Manufacturer
HVGT
File Size
468.98 KB
Datasheet
CL03-10-HVGT.pdf
Description
High Voltage Axial Lead Power Diodes
