Part number:
4GBJ406U
Manufacturer:
HY ELECTRONIC
File Size:
42.41 KB
Description:
Bridge rectifiers

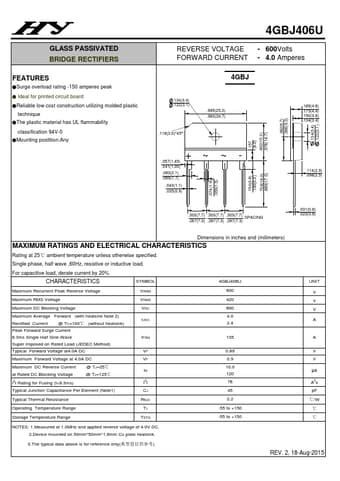

4GBJ406U
HY ELECTRONIC
42.41 KB
Bridge rectifiers
* Surge overload rating -150 amperes peak
* Ideal for printed circuit board
* Reliable low cost construction utilizing molded plastic technique
* The plastic material has UL flammability classification 94V-0
* Mounting postition:Any 4GBJ406U REVERSE VOLTAGE - 600Volts FORWARD CURREN
