Part number:
4GBJ802
Manufacturer:
HY ELECTRONIC
File Size:
117.04 KB
Description:
(4gbj8005 - 4gbj810) glass passivated bridge rectifiers

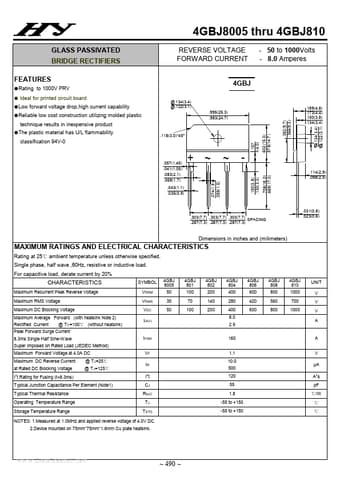

4GBJ802
HY ELECTRONIC
117.04 KB
(4gbj8005 - 4gbj810) glass passivated bridge rectifiers
* Rating to 1000V PRV
* Ideal for printed circuit board
* Low forward voltage drop,high current capability
* Reliable low cost construction utilizing molded plastic ? .134(3.4) ? .122(3.1) .995(25.3) .983(24.7) REVERSE VOLTAGE FORWARD CURRENT 4GBJ - 50 to 1000Volts - 8.0 Amperes .043
