BR302 - (BR3005 - BR310) SILICON BRIDGE RECTIFIERS

This page provides the datasheet information for the BR302, a member of the BR3005 (BR3005 - BR310) SILICON BRIDGE RECTIFIERS family.

Datasheet Summary

Features

  • Surge overload rating - 50 amperes peak.
  • Low forward voltage drop.
  • Small size; simple installation.
  • Tinned copper leads.
  • Mounting position: Any.
  • Mounting:Thru hole for #6 screw .032(0.81) .028(0.71) .750 MIN. (19.0) .620(15.71) .580(14.96) .413(10.50) .374(9.50) HOLE FOR NO.6 SCREW .620(15.71) .580(14.96) .413(10.50) .374(9.50) Dimensions in inches and (milimeters).

📥 Download Datasheet

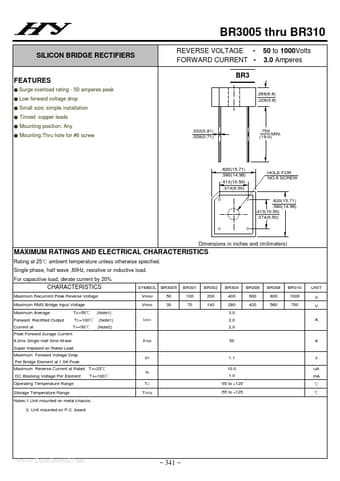

Datasheet preview – BR302
