KBPC10005W - SILICON BRIDGE RECTIFIERS

Datasheet Summary

Features

  • Surge overload -240~500 Amperes peak.
  • Low forward voltage drop.
  • Mounting Position : Any.
  • Electrically isolated base -2000 Volts.
  • Solderable 0.25" FASTON terminals.
  • Materials used carries U/L recognition.

📥 Download Datasheet

Datasheet preview – KBPC10005W

Datasheet Details

Part number KBPC10005W
Manufacturer HY ELECTRONIC
File Size 26.56 KB
Description SILICON BRIDGE RECTIFIERS
Datasheet download datasheet KBPC10005W Datasheet
Additional preview pages of the KBPC10005W datasheet.

📁 Similar Datasheet

  • KBPC10005W-G - Silicon Bridge Rectifiers (Comchip)
  • KBPC10005 - SINGLE-PHASE GLASS PASSIVATED BRIDGE RECTIFIERS (Kingtronics)
  • KBPC10005 - Bridge Rectifier (Formosa MS)
  • KBPC10005 - Bridge Rectifier (Yangzhou Yangjie)
  • KBPC10005 - 10.0 A Single-Phase Silicon Bridge Rectifier (SEP ELECTRONIC)
  • KBPC10005 - SINGLE-PHASE BRIDGE RECTIFIER (Suntan)
  • KBPC10005 - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER (STS)
  • KBPC10005 - Silicon Bridge Rectifiers (GME)
  • KBPC10005 - Single Phase 10 Amps. Glass Passivated Bridge Rectifiers (JGD)
  • KBPC10005 - SINGLE PHASE SILICON BRIDGE RECTIFIER (CHENYI ELECTRONICS)
Other Datasheets by HY ELECTRONIC

Full PDF Text Transcription

Click to expand full text

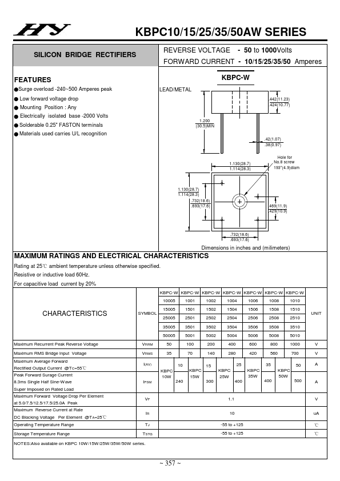

KBPC10/15/25/35/50AW SERIES SILICON BRIDGE RECTIFIERS FEATURES ●Surge overload -240~500 Amperes peak ● Low forward voltage drop ● Mounting Position : Any ● Electrically isolated base -2000 Volts ● Solderable 0.25" FASTON terminals ● Materials used carries U/L recognition REVERSE VOLTAGE - 50 to 1000Volts FORWARD CURRENT - 10/15/25/35/50 Amperes LEAD/METAL KBPC-W .442(11.23) .424(10.77) 1.200 (30.5)MIN 1.130(28.7) 1.114(28.3) .42(1.07) .38(0.97) Hole for No.8 screw 193"(4.9)diam 1.130(28.7) 1.114(28.3) .732(18.6) .693(17.6) .469(11.9) .429(10.9) .732(18.6) .693(17.6) Dimensions in inches and (milimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25℃ ambient temperature unless otherwise specified. Resistive or inductive load 60Hz.
