KBU4005 - Silicon Bridge Rectifiers

Key Features

  • Surge overload rating -150 amperes peak.
  • Ideal for printed circuit board.
  • Reliable low cost construction utilizing molded plastic technique.
  • Plastic material has UL.
  • Mounting postition:Any.
  • Mounting torgue:5 In. Ib. Max KBU4005 thru KBU410.

📥 Download Datasheet

Datasheet Details

Part number KBU4005
Manufacturer HY ELECTRONIC
File Size 147.22 KB
Description Silicon Bridge Rectifiers
Datasheet download datasheet KBU4005 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KBU4005 Single Phase 4.0 AMPS. Glass Passivated Bridge Rectifiers GOOD ELECTRONIC
KBU4005 SILICON BRIDGE RECTIFIERS Eris
KBU4005 Bridge Rectifier First Silicon
KBU4005 4A Miniature Glass Passivated Single-Phase Bridge Rectifiers CITC
KBU4005 Silicon Bridge Rectifiers GME

Other Datasheets by HY ELECTRONIC

Part Number Description
KBU4005G GLASS PASSIVATED BRIDGE RECTIFIERS
KBU401 Silicon Bridge Rectifiers
KBU401G GLASS PASSIVATED BRIDGE RECTIFIERS
KBU402 Silicon Bridge Rectifiers
KBU402G GLASS PASSIVATED BRIDGE RECTIFIERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

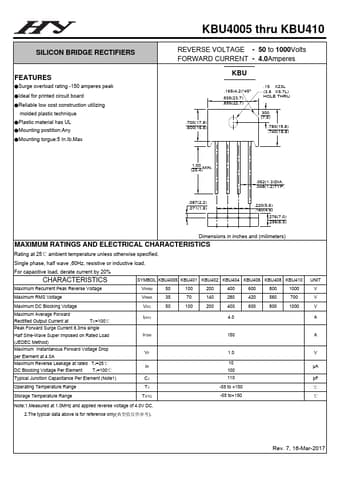

SILICON BRIDGE RECTIFIERS FEATURES ●Surge overload rating -150 amperes peak ●Ideal for printed circuit board ●Reliable low cost construction utilizing molded plastic technique ●Plastic material has UL ●Mounting postition:Any ●Mounting torgue:5 In.Ib.Max KBU4005 thru KBU410 REVERSE VOLTAGE - 50 to 1000Volts FORWARD CURRENT - 4.0Amperes .700(17.8) .600(16.8) KBU .165(4.2)*45° .935(23.7) .895(22.7) .15 X23L (3.8 X5.7L) HOLE THRU 300 (7.5) .780(19.8) .740(18.8) (12.50.04)MIN. .052(1.3)DIA. .048(1.2)TYP. .087(2.2) .071(1.8) .220(5.6) .180(4.6) .276(7.0) .256(6.5) Dimensions in inches and (milimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25℃ ambient temperature unless otherwise specified. Single phase, half wave ,60Hz, resistive or inductive load.
