Datasheet Details
Part number:
PAC3B15SB, PAC3B03SB-HY
Manufacturer:
HY-LINE
File Size:
426.23 KB
Description:
3w ac-dc power-supply.
Note:
This datasheet PDF includes multiple part numbers: PAC3B15SB, PAC3B03SB-HY.
Please refer to the document for exact specifications by model.

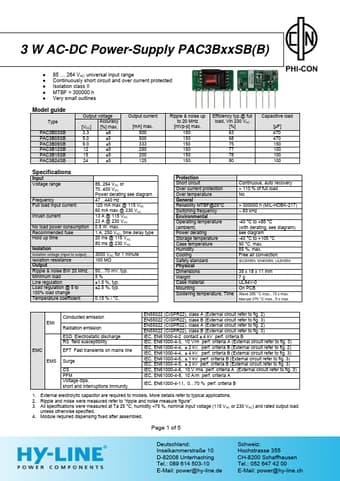

PAC3B15SB, PAC3B03SB-HY, 3W AC-DC Power-Supply
3 W AC-DC Power-Supply PAC3BxxSB(B) 85 … 264 VAC universal input range Continuously short circuit and over current protected Isolation class II MTBF > 300000 h Very small outlines Model guide Type PAC3B03SB PAC3B05SB PAC3B09SB PAC3B12SB PAC3B15SB PAC3B24SB Output voltage Accuracy [VDC] [%] max.
3.3 ±8 5.0 ±5 9.0 ±5 12 ±5 15 ±5 24 ±5 Output current [mA] max.
500 500 333 250 200 125 Ripple & noise up to 20 MHz [mVp-p] max.
150 150 150 150 150 150 Efficiency typ.
