12SQ060, 12SQ040 PHOTOVOLTAIC SOLAR CELL PROTECTION SCHOTTKY RECTIFIER

12SQ060 Description

PHOTOVOLTAIC SOLAR CELL PROTECTION SCHOTTKY RECTIFIER .

12SQ060 Features

* Metal of silicon rectifier , majority carrier conduction
* Guard ring for transient protection
* Low power loss,high efficiency
* High current capability,low VF
* High surge capacity
* For use in low voltage,high frequency inverters,free wheeling,and polarity protection applicati

12SQ060 Applications

* 12SQ040 thru 12SQ100 REVERSE VOLTAGE - 40 to 100Volts FORWARD CURRENT - 12.0 Amperes R-6 TC measurement point MECHANICAL DATA
* Case: JEDEC R-6 molded plastic
* Polarity: Color band denotes cathode
* Weight: 0.07 ounces , 2.1 grams
* Mounting position: Any Dimensions in inches and (m

📥 Download Datasheet

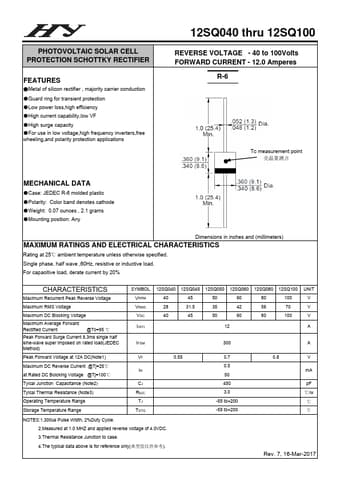

12SQ060 Datasheet Preview — This datasheet PDF includes multiple part numbers: 12SQ060, 12SQ040. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: 12SQ060, 12SQ040
Manufacturer: HY
File Size: 145.78 KB
Datasheet: 12SQ040-HY.pdf
Description: PHOTOVOLTAIC SOLAR CELL PROTECTION SCHOTTKY RECTIFIER
Note: This datasheet PDF includes multiple part numbers: 12SQ060, 12SQ040.
Please refer to the document for exact specifications by model.
