D2KB05 GLASS PASSIVATED BRIDGE RECTIFIERS

D2KB05 Description

GLASS PASSIVATED BRIDGE RECTIFIERS .

D2KB05 Features

* Glass passivated chip junction
* High case dielectric strength
* High surge current capability ldeal for printed circuit board D2KB05 thru D2KB10 REVERSE VOLTAGE - 50 to 1000Volts FORWARD CURRENT - 2.0 Amperes D3K .057(1.45) R2 .555(14.1) .531(13.5) .130(3.3) .114(2.9) .110(2.8) .0

📥 Download Datasheet

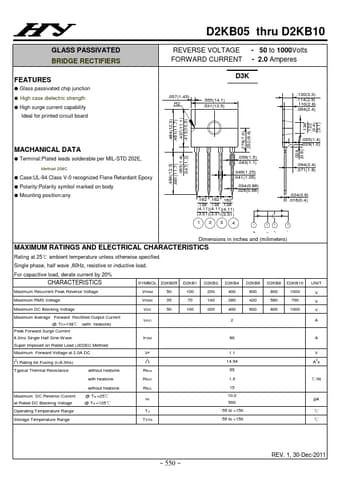

Preview of D2KB05 PDF
datasheet Preview Page 2

Datasheet Details

Part number
D2KB05
Manufacturer
HY
File Size
37.50 KB
Datasheet
D2KB05-HY.pdf
Description
GLASS PASSIVATED BRIDGE RECTIFIERS
