D4KB05

GLASS PASSIVATED BRIDGE RECTIFIERS

D4KB05 Features

* Glass passivated chip junction

* High case dielectric strength

* High surge current capability ldeal for printed circuit board D4KB05 thru D4KB10 REVERSE VOLTAGE - 50 to 1000Volts FORWARD CURRENT - 4.0 Amperes D3K .057(1.45) R2 .555(14.1) .531(13.5) .130(3.3) .114(2.9) .110(2.8)

D4KB05 Datasheet (146.49 KB)

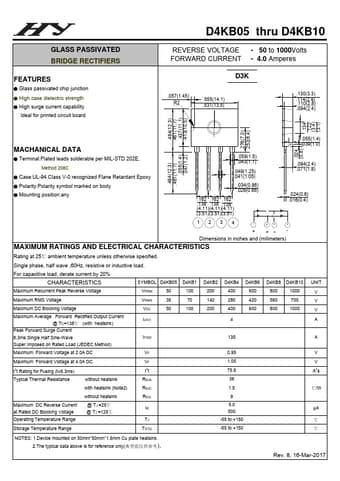

Preview of D4KB05 PDF

Datasheet Details

Part number:

D4KB05

Manufacturer:

HY

File Size:

146.49 KB

Description:

Glass passivated bridge rectifiers.
