MBR1080, MBR1030 Schottky Barrier Recitifier

MBR1080 Description

www.hygroup.com.tw Schottky Barrier Recitifiers .

MBR1080 Features

* Low forward voltage drop
* High current capabiliity
* High surge capability
* The plastic material carries UL recognition 94V-0 Mechanical Data
* Case: JEDEC TO-220AC molded plastic
* Polarity: As marked on the body
* Mounting position: Any Note: Products with logo

MBR1080 Applications

* For use in low vlotage, high frequency inverters, polarity protection applications. MBR1030 THRU MBR10100 Reverse Voltage - 30 to 100 Volts Forward Current - 10.0 Amperes TO-220AC Pb RoHS COMPLIANT Maximum Ratings and Electrical Characteristics Rating at 25℃ ambient temperature unless ot

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR1080, MBR1030. Please refer to the document for exact specifications by model.

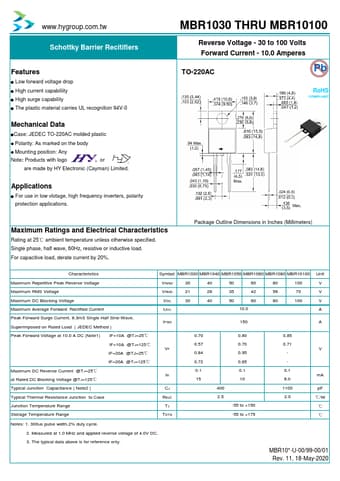

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR1080, MBR1030
Manufacturer
HY
File Size
300.62 KB
Datasheet
MBR1030-HY.pdf
Description
Schottky Barrier Recitifier
Note
This datasheet PDF includes multiple part numbers: MBR1080, MBR1030.
Please refer to the document for exact specifications by model.
