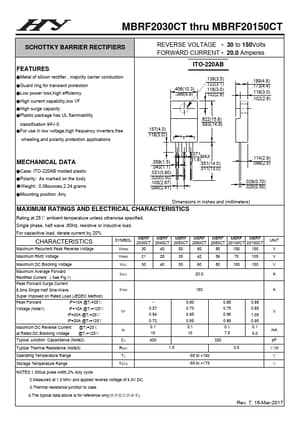

datasheet Preview Page 1 from Datasheet4u.com

MBRF2060CT, MBRF2030CT SCHOTTKY BARRIER RECTIFIERS

MBRF2030CT thru MBRF20150CT SCHOTTKY BARRIER RECTIFIERS .

MBRF2030CT-HY.pdf

MBRF2060CT Datasheet Preview — This datasheet PDF includes multiple part numbers: MBRF2060CT, MBRF2030CT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MBRF2060CT, MBRF2030CT

Manufacturer:

File Size:

134.81 KB

Description:

SCHOTTKY BARRIER RECTIFIERS

Note:

This datasheet PDF includes multiple part numbers: MBRF2060CT, MBRF2030CT.
Please refer to the document for exact specifications by model.

Features

* Metal of silicon rectifier , majority carrier conduction
* Guard ring for transient protection
* Low power loss,high efficiency
* High current capability,low VF
* High surge capacity
* Plastic package has UL flammability classification 94V-0
* For use in low voltage,high frequ

Applications

* REVERSE VOLTAGE - 30 to 150Volts FORWARD CURRENT - 20.0 Amperes ITO-220AB .406(10.3) .386(9.8) .138(3.5) .122(3.1) .118(3.0) .102(2.6) .189(4.8) .173(4.4) .118(3.0) .102(2.6) .157(4.0) .118(3.0) .622(15.8) .583(14.8) MECHANICAL DATA
* Case: ITO-220AB molded plastic
* Polarity: As marked
