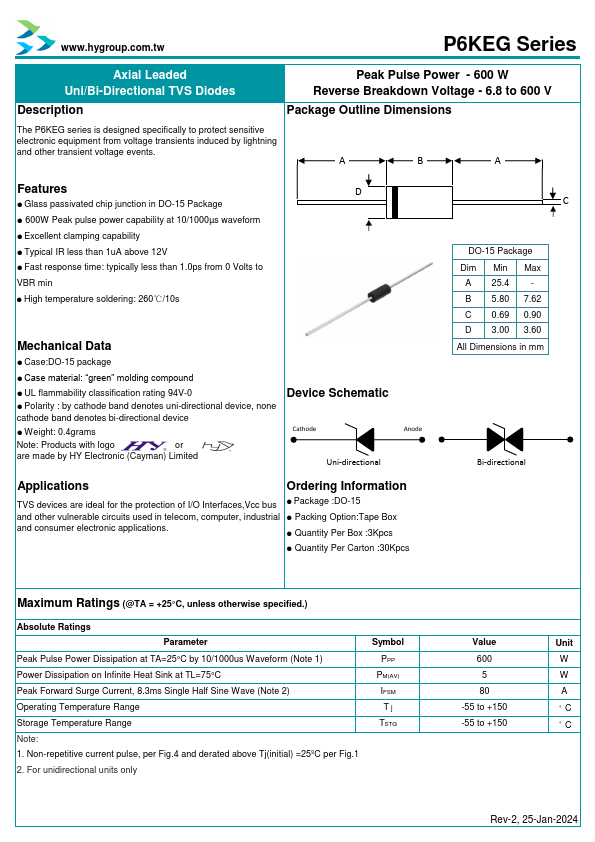

P6KEG130CA Description
www.hygroup.com.tw www.hygroup.com.tw P6KEG Series Axial Leaded Uni/Bi-Directional TVS Diodes Peak Pulse Power - 600 W Reverse Breakdown Voltage - .
Package Outline Dimensions
The P6KEG series is designed specifically to protect sensitive
electronic equipment from voltage transients induced by l.
P6KEG130CA Features
* D
* Glass passivated chip junction in DO-15 Package
* 600W Peak pulse power capability at 10/1000µs waveform
* Excellent clamping capability
* Typical IR less than 1uA above 12V
* Fast response time: typically less than 1.0ps from 0 Volts to
VBR min
* High temperature
P6KEG130CA Applications
* Ordering Information
TVS devices are ideal for the protection of I/O Interfaces,Vcc bus
* Package :DO-15
and other vulnerable circuits used in telecom, computer, industrial
* Packing Option:Tape Box
and consumer electronic applications.
* Quantity Per Box :3Kpcs
* Quantity Per
