P6KEG200A
Description
Package Outline Dimensions

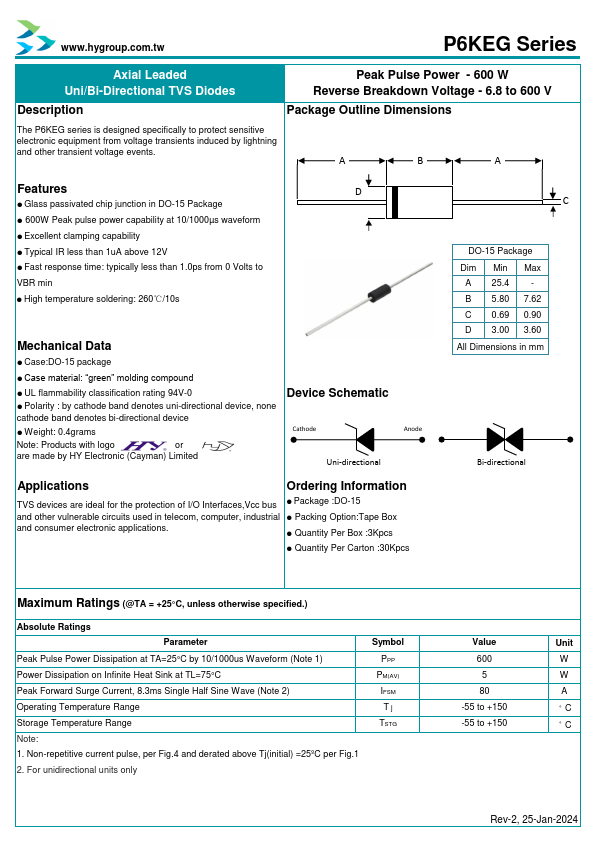

The P6KEG series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Features
- Glass passivated chip junction in DO-15 Package
- 600W Peak pulse power capability at 10/1000µs waveform
- Excellent clamping capability
- Typical IR less than 1u A above 12V
- Fast response time: typically less than 1.0ps from 0 Volts to
VBR min
- High temperature soldering: 260℃/10s
Mechanical Data
- Case:DO-15 package
- Case material: “green” molding pound
- UL flammability classification rating 94V-0
- Polarity : by cathode band denotes uni-directional device, none cathode band denotes bi-directional device
- Weight: 0.4grams
Note: Products with logo or are made by HY Electronic (Cayman) Limited
Device Schematic
Cathode
Uni-directional
Anode
Applications
Ordering Information
TVS devices are ideal for the protection of I/O...
