P6KEG400CA, P6KEG6.8A Uni/Bi-Directional TVS Diodes

Description

www.hygroup.com.tw www.hygroup.com.tw P6KEG Series Axial Leaded Uni/Bi-Directional TVS Diodes Peak Pulse Power - 600 W Reverse Breakdown Voltage - .
Package Outline Dimensions The P6KEG series is designed specifically to protect sensitive electronic equipment from voltage transients induced by l.

📥 Download Datasheet

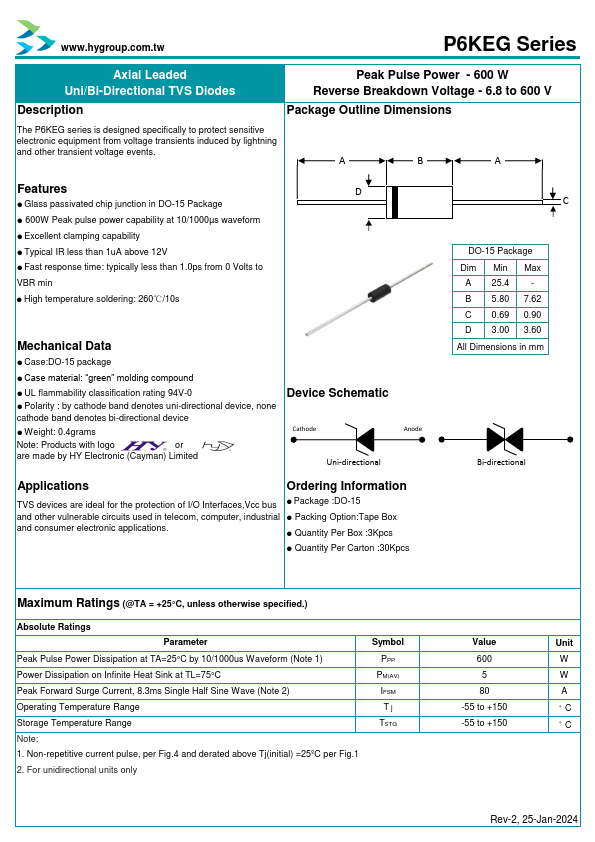

P6KEG400CA Datasheet Preview — This datasheet PDF includes multiple part numbers: P6KEG400CA, P6KEG6.8A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: P6KEG400CA, P6KEG6.8A
Manufacturer: HY
File Size: 508.54 KB
Datasheet: P6KEG6.8A-HY.pdf
Description: Uni/Bi-Directional TVS Diodes
Note: This datasheet PDF includes multiple part numbers: P6KEG400CA, P6KEG6.8A.
Please refer to the document for exact specifications by model.

Features

* D
* Glass passivated chip junction in DO-15 Package
* 600W Peak pulse power capability at 10/1000µs waveform
* Excellent clamping capability
* Typical IR less than 1uA above 12V
* Fast response time: typically less than 1.0ps from 0 Volts to VBR min
* High temperature

Applications

* Ordering Information TVS devices are ideal for the protection of I/O Interfaces,Vcc bus
* Package :DO-15 and other vulnerable circuits used in telecom, computer, industrial
* Packing Option:Tape Box and consumer electronic applications.
* Quantity Per Box :3Kpcs
* Quantity Per
