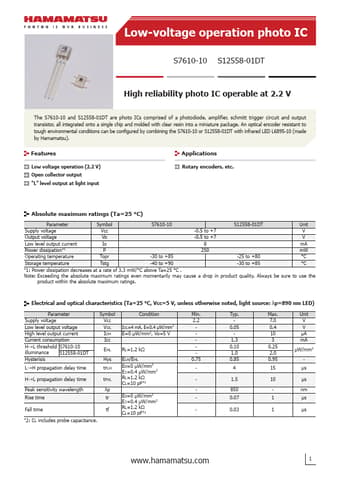

Low-voltage operation photo IC
S7610-10 S12558-01DT
High reliability photo IC operable at 2.2 V
The S7610-10 and S12558-01DT are photo ICs comprised of a photodiode, amplifier, schmitt trigger circuit and output transistor, all integrated onto a single chip and molded with clear resin into a miniature package. An optical encoder resistant to tough environmental conditions can be configured by combining the S7610-10 or S12558-01DT with infrared LED L6895-10 (made by Hamamatsu).
Features
Applications
Low voltage operation (2.2 V) Open collector output “L” level output at light input
Rotary encoders, etc.
Absolute maximum ratings (Ta=25 °C)
Parameter
Symbol
S7610-10
S12558-01DT
Unit
Supply voltage
Vcc
-0.5 to +7
V
Output voltage
Vo
-0.
