HMD16M32M8EH - 64Mbyte (16Mx32) 72-pin EDO Mode 4K Ref. SIMM Design 5V

General Description

The HMD16M32M8EH is a 16M x 32bit dynamic RAM high-density memory module.

The module consists of eight CMOS 16M x 4bit DRAMs in 32-pin TSOPII packages mounted on a 72-pin, double-sided, FR-4-printed circuit board.

Key Features

  • wPart Identification www. DataSheet4U. com HMD16M32M8EH----4K Cycles/64ms Ref w Access times : 50, 60ns w High-density 64MByte design w Single + 5V ±0.5V power supply w JEDEC standard pinout w EDO mode operation w TTL compatible inputs and outputs w FR4-PCB design PIN 1 2 3 4 5 6 7 8 9 10 11 -5 -6 M 12 13 14 15 16 17 tRC 84ns 104ns 18 19 20 21 22 23 24 SYMBOL Vss DQ0 DQ16 DQ1 DQ17 DQ2 DQ18 DQ3 DQ19 Vcc NC A0 A1 A2 A3 A4 A5 A6 A10 DQ4 DQ20 DQ5 DQ21 DQ6 PIN 25 26 27 28 29 30 31 32 33 34 35 36 37 38.

📥 Download Datasheet

Datasheet Details

Part number HMD16M32M8EH
Manufacturer Hanbit Electronics
File Size 114.04 KB
Description 64Mbyte (16Mx32) 72-pin EDO Mode 4K Ref. SIMM Design 5V
Datasheet download datasheet HMD16M32M8EH Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HMD-A440 TORINITORON COLOR COMPUTER DISPLAY SERVICE MANUAL Sony

Other Datasheets by Hanbit Electronics

Part Number Description
HMD16M32M8G 64Mbyte(16Mx32) 72-pin FP Mode 4K Ref. SIMM Design 5V
HMD16M32M8GH 64Mbyte (16Mx36) FP Mode 4K Ref. 72pin-SIMM Design
HMD16M36M12EG 64Mbyte (16Mx36) EDO
HMD16M36M12G 64Mbyte (16Mx36) FP
HMD16M64D16EV 128Mbyte(16Mx64) EDO Mode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

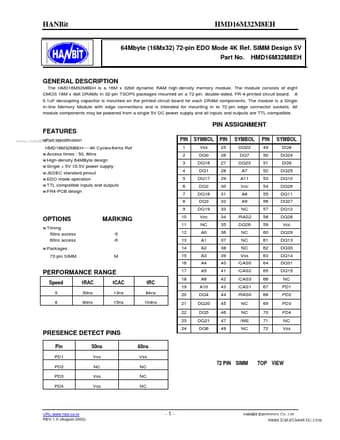

HANBit HMD16M32M8EH 64Mbyte (16Mx32) 72-pin EDO Mode 4K Ref. SIMM Design 5V Part No. HMD16M32M8EH GENERAL DESCRIPTION The HMD16M32M8EH is a 16M x 32bit dynamic RAM high-density memory module. The module consists of eight CMOS 16M x 4bit DRAMs in 32-pin TSOPII packages mounted on a 72-pin, double-sided, FR-4-printed circuit board. A 0.1uF decoupling capacitor is mounted on the printed circuit board for each DRAM components. The module is a Single In-line Memory Module with edge connections and is intended for mounting in to 72-pin edge connector sockets. All module components may be powered from a single 5V DC power supply and all inputs and outputs are TTL-compatible. PIN ASSIGNMENT FEATURES wPart Identification www.DataSheet4U.
