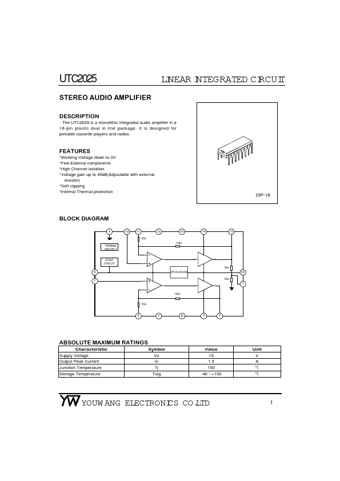

UTC2025
DESCRIPTION
The UTC2025 is a monolithic integrated audio amplifier in a 16-pin plastic dual in line package. It is designed for portable cassette players and radios.
FEATURES
- Working Voltage down to 3V
- Few External ponents
- High Channel isolation
- Voltage gain up to 45d B(Adjustable with external resistor)
- Soft clipping
- Internal Thermal protection
DIP-16
BLOCK DIAGRAM
9 10 11
50Ω
THERMAL PROTECT
10kΩ
START CIRCUIT
DECOUPLING
50Ω
10kΩ
14 15
5kΩ
50Ω
ABSOLUTE MAXIMUM RATINGS
Characteristic
Symbol
Supply Voltage
Output Peak Current
Junction...
