HSD040B8W9-A01 Datasheet - HannStar

HSD040B8W9-A01 Color TFT-LCD Module

of change 1.0 Feb.03,2015 A01 Preliminary Specification was first released. The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not be disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display .

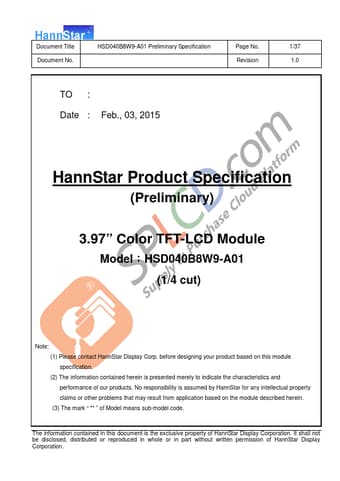

Document Title HSD040B8W9-A01 Preliminary Specification Page No. 1/37 Document No. Revision 1.0 TO : Date : Feb., 03, 2015 HannStar Product Specification (Preliminary) 3.97” Color TFT-LCD Module Model：HSD040B8W9-A01 (1/4 cut) Note: (1) Please contact HannStar Display Corp. before designing your product based on this module specification. (2) The information contained herein is presented merely to indicate the characteristics and performance of our products. No responsibility is assumed .

HSD040B8W9-A01 Features

* 3.97 (15:9 diagonal) inch configuration

* 16.7M color by 8 bit R.G.B signal input

* RoHS Compliance & Halogen Free 1.3 Applications

* Mobile Smart Phone

* Personal Navigation Device

* Multimedia applications and AV system 1.4 General Information Item Outline Dimension Dis

HSD040B8W9-A01 Datasheet (1.51 MB)

HSD040B8W9-A01 Datasheet Preview — Preview of HSD040B8W9-A01 PDF

Datasheet Details

Part number:

HSD040B8W9-A01

Manufacturer:

HannStar

File Size:

1.51 MB

Description:

Color tft-lcd module.
