DM16116

Display Module

DM16116 Features

* Character Format 5x7 Dots with Cursor BacklightEL Optional Options..TN/Gray STN/Yellow STN, 12 o’Clock/6 o’Clock View Normal/Extended Temperature Normal/Negative Displays Physical Data Module Size80.0W x 36.0H x 10.0T mm Viewing Area Size63.7W x 13.5H mm Weight25g Block Diagram Absolute Maximum Ra

DM16116 Datasheet (75.61 KB)

Preview of DM16116 PDF

Datasheet Details

Part number:

DM16116

Manufacturer:

Hantronix

File Size:

75.61 KB

Description:

Display module.

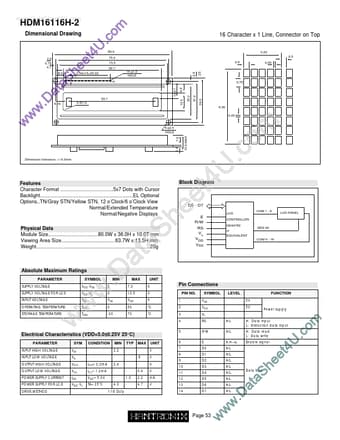

www.DataSheet4U.com HDM16116H-2 Dimensional Drawing 2.5 0.75 4.7 8.0 w w w .D 25.2 8.15 4-R1.0 13.5 36.0 59.7 31.0 a 12.67 ta 1 e h .
