HDG1602F

16 Character x 2 Line Display Module

HDG1602F Features

* Character Format 5x7 Dots with Cursor Connection Flat Flex Cable OptionsSTN, Reflective Polarizer Characters240 in ROM, 8 user designed in RAM Physical Data Module Size65.0W x 27.7H x 2.0T mm Viewing Area Size61.0W x 15.7H mm Character Size2.95W x 5.15H mm Weight7.0 g Absolute Maximum Ratings PAR

HDG1602F Datasheet (24.78 KB)

Preview of HDG1602F PDF

Datasheet Details

Part number:

HDG1602F

Manufacturer:

Hantronix

File Size:

24.78 KB

Description:

16 character x 2 line display module.

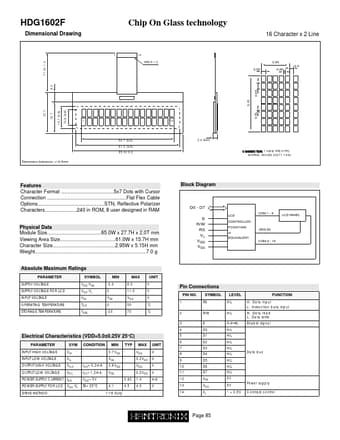

HDG1602F Dimensional Drawing Chip On Glass technology 1 14 PITCH 1.0 16 Character x 2 Line 2.95 0.5 0.55 0.05 71.3±1.0 8.0 5.15 0.60 0.05 27.7 .
