HDR128128 128x128 GRAPHICS OLED DISPLAY MODULE

Pin Name Pin No. Type Description GND 1 I Power Supply (0V) VDD 2 I Power Supply (5V) VEE 3 I Power Supply (for panel :9V) WR RD CE 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 I I I Data Write Data Read. Chip Enable for T6963C. WR =L C/D= H: Command Write C/D=: L Data Write RD =L C/D= H: Status .

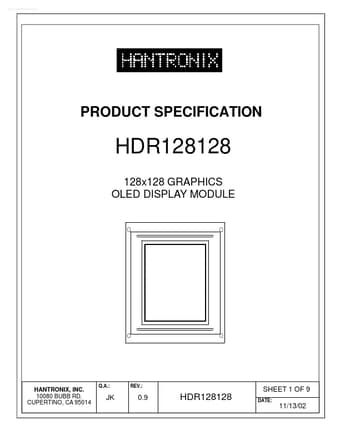

www.DataSheet4U.com PRODUCT SPECIFICATION HDR128128 128x128 GRAPHICS OLED DISPLAY MODULE HANTRONIX, INC. 10080 BUBB RD. CUPERTINO, CA 95014 Q.A.: REV.: SHEET 1 OF 9 JK 0.9 HDR128128 DATE: 11/13/02 1. MECHANICAL DATA NO 1 2 3 4 5 6 7 8 9 10 11 ITEM Dot Matrix Dot Size Dot Pitch Aperture Rate Active Area View Area Panel Size Panel Thickness Module Size Weight Duty SPECIFICATION 128 (W) x 128 (H) 0.32 (W) x 0.32 (H) 0.35 (W) x 0.35 (H) 84 44.77(W) x 44.77(H) 49.0(W) x 49.0(H) 65.2(W) x .
