IS82C55A, CMOS Programmable Peripheral Interface

Semiconductor 82C55A CMOS Programmable Peripheral Interface .
The Harris 82C55A is a high performance CMOS version of the industry standard 8255A and is manufactured using a self-aligned silicon gate CMOS process.

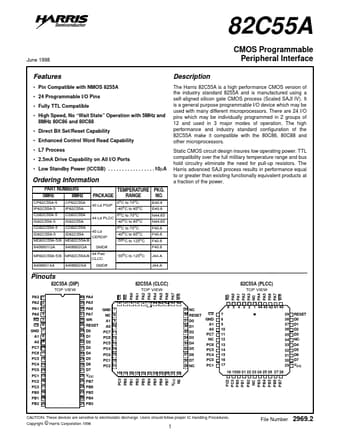

datasheet Preview Page 1 from Datasheet4u.com

IS82C55A_HarrisCorporation.pdf

IS82C55A Datasheet Preview — Preview of IS82C55A PDF

Datasheet Details

Part number:

IS82C55A

Manufacturer:

Harris Corporation

File Size:

234.44 KB

Description:

CMOS Programmable Peripheral Interface

Features

* Pin Compatible with NMOS 8255A
* 24 Programmable I/O Pins
* Fully TTL Compatible
* High Speed, No “Wait State” Operation with 5MHz and 8MHz 80C86 and 80C88
* Direct Bit Set/Reset Capability
* Enhanced Control Word Read Capability
* L7 Process
