MUR3015PT Datasheet - Harris Corporation

(MUR3010PT - MUR3020PT) Ultrafast Dual Diodes

MUR3015PT Features

* Ultrafast with Soft Recovery Characteristic (tRR < 30ns)

* +175oC Rated Junction Temperature

* Reverse Voltage Up to 200V

* Avalanche Energy Rated Applications

* Switching Power Supply

* Power Switching Circuits

* General Purpose CATHODE (F

MUR3015PT General Description

MUR3010PT, MUR3015PT, MUR3020PT and RURH1510CC, RURH1515CC, RURH1520CC are ultrafast dual diodes (tRR < 30ns) with soft recovery characteristics. They have a low forward voltage drop and are of planar, silicon nitride passivated, ion-implanted, epitaxial construction. These devices are intended for .

MUR3015PT Datasheet (57.77 KB)

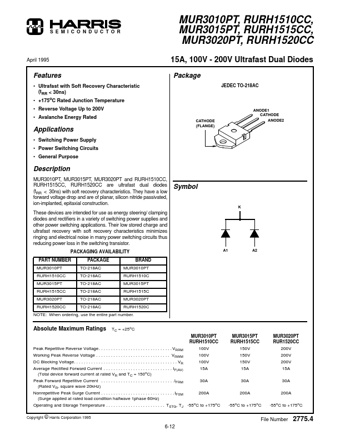

MUR3015PT Datasheet Preview — Preview of MUR3015PT PDF

Datasheet Details

Part number:

MUR3015PT

Manufacturer:

Harris Corporation

File Size:

57.77 KB

Description:

(mur3010pt - mur3020pt) ultrafast dual diodes.
www.DataSheet4U.com S E M I C O N D U C T O R MUR3010PT, RURH1510CC, MUR3015PT, RURH1515CC, MUR3020PT, RURH1520CC 15A, 100V - 200V Ultrafast Dual Di.
